Why are Food Grade Conveyors So Important?

Your company has worked hard to build its reputation. Food safety is constantly in the news. We understand that protecting your reputation and the safety of your product is essential. Food-grade conveyors are one of the most important parts of the food and beverage industry. The most basic requirements are to ensure hygienic processing and packaging. If sourcing and design is not taken seriously, a contamination recall can occur. Any event like that will wreak havoc on a business’s bottom line and reputation.

The goal of food-grade conveyor systems is to not only to provide food contamination response, but to prevent contamination from ever happening in the first place. We also understand that some exotic materials and systems can be very expensive. Stainless steel is often used. In some cases these materials can be 3 – 5 times more expensive than an ordinary industrial conveyor. Ultimation’s experts will help you choose the right materials for your product and regulations. We want you to get the best value system. That’s why we have a huge range of alternatives!

What are the Types of Conveyors Used in the Food Industry?

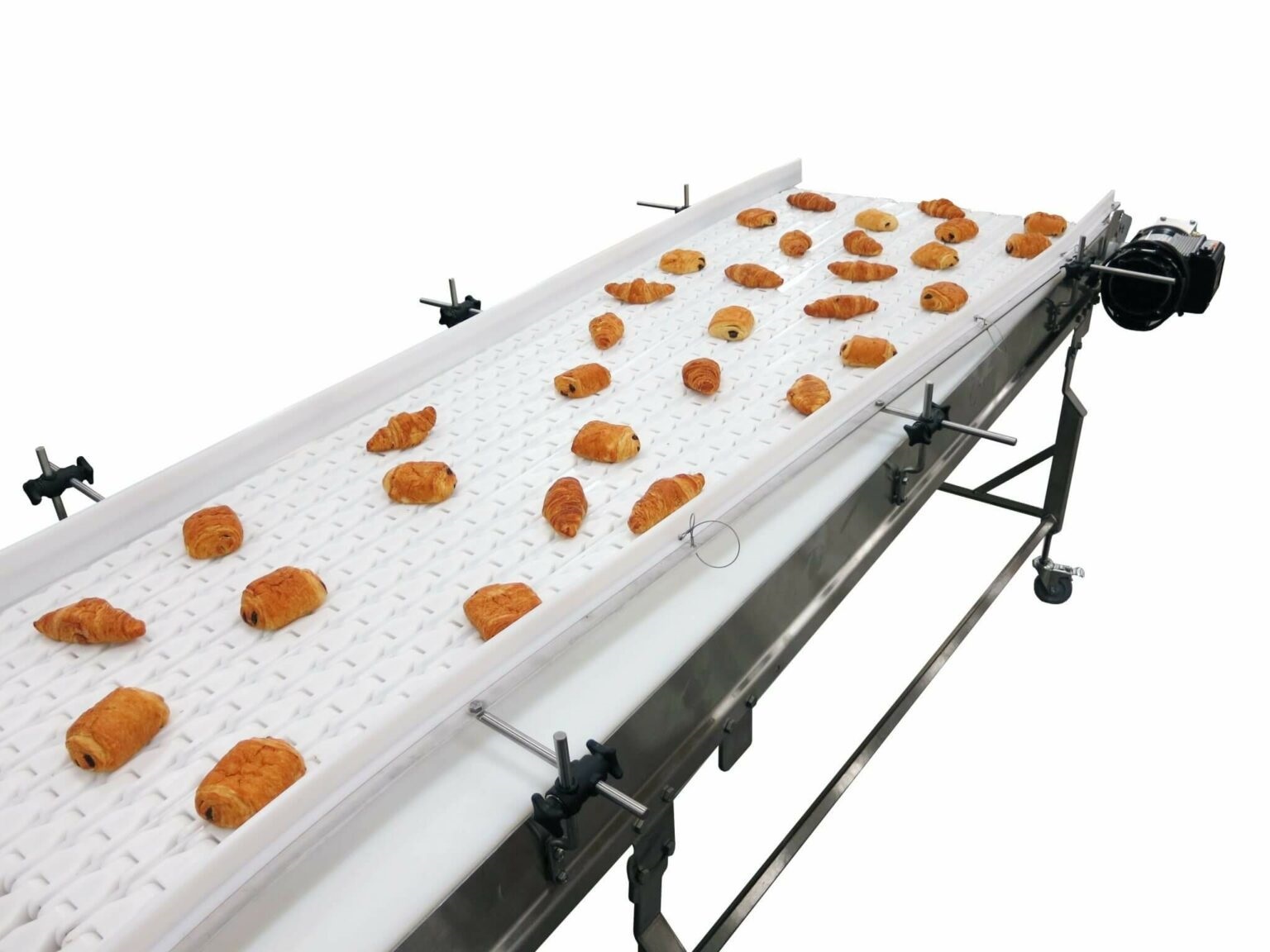

• Belt Conveyors:
  Food-grade conveyor belt types are the most common conveyor type in the food industry. Because their construction offers a smooth, continuous surface, they are easy to clean. This makes food conveyor belts ideal for food handling. These food belt conveyor systems are used throughout processing and packaging. The belt material for food-based applications must meet FDA regulations. It also must be strong, durable and made from acceptable use materials. Importantly, the materials that are acceptable for use with food products should always be easily cleaned. Customers often refer to these products as a food conveyor belt.
• Wire Mesh Conveyors:
  Food grade wire mesh conveyors are constructed of stainless steel materials. The can withstand high and low temperatures, and products stick to them less easily. Wire mesh belt conveyors are available in any length, width, or speed to fit an application’s specific requirements.

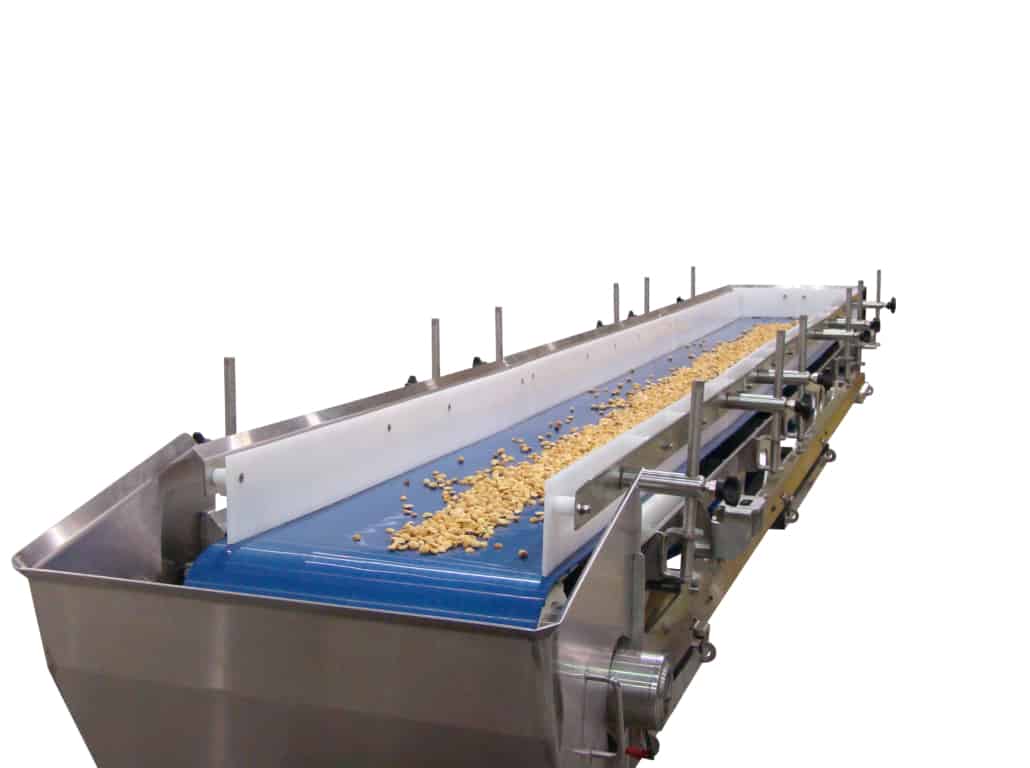

• Troughed Belt Conveyors:
  Trough belt conveyors keep materials in the center of the conveyor. These conveyors are great for conveying bulk materials. Use them when conveying long distances while minimizing product loss from spillage.
• Roller conveyors:
  Roller conveyors is a broad term and can stand for a variety of roller conveyor types. They include Gravity Roller, Chain Driven Live Roller (CDLR), Line shaft Driven Live Roller (LDLR), and Motor Driven Roller (MDR). These conveyor types are often used in food package handling applications. They are custom built to fit specific applications. That might include wash-down environment, specific temperature ranges, and many others. Finally, frames can be stainless steel (expensive) or powder coated carbon steel (more affordable).

What are the Types of Materials Used to Construct Food Grade Processing Systems?

Food grade systems are always designed and constructed of sanitary and hygienic materials. Each project has its own needs and requirements that we will study with you. The process begins with understanding your product, the application and the applicable regulations. We will look at the type of conveyor you need, for example whether a roller or belt style would work best. Next, we look at areas of the conveyors where the food or organic materials are in contact with the surfaces.

In some cases, different materials can be used according to whether the food is in constant contact with a surface or not. For example, food moving along a belt conveyor is always in contact with the belt. So the food conveyor belt material always needs to meet or exceed the requirement for contact with the food. Frame materials and guarding materials can have different requirements. Where conveyor frames are not in contact with any food materials, powder coated carbon steel finishes are the lowest cost solution. Galvanized or zinc plated surfaces are allowed in some other situations. Stainless steel grades are most common for the highest levels of protection. This includes most washdown standard requirements. Stainless steel conveyor belts use stainless steel for the frames and food grade materials for the conveyor belt.

Food grade oils and greases to lubricate washdown conveyors

Conveyors are always designed to ensure that any lubricants don’t get in direct contact with your product. But motors and bearings need lubricants or they will fail. We design Ultimation’s industrial food-grade conveyor belts with protected mechanical and electrical devices. Lubricants meet the appropriate National Sanitation Foundation (NSF) grade. ISO Standard 21469 is a voluntary standard that also provides more guidance in selecting lubricants. You can learn more about the lubricant requirements here and here. The US Department of Agriculture (USDA) prepared the original regulations, and now the NSF manages the program. Categories for lubricants under the program are:

• Category H3
  Known as soluble or edible oils. Used to clean and prevent rust on hooks, trolleys and similar equipment.
• Category H2
  Used in places where there is NO possibility of contaminating the food. Because there is no risk of contamination, H2 lubricants don’t have a defined list of acceptable ingredient. But there ARE a some substances it definitely cannot contain.
• Category H1
  Food processing environments where there is some possibility of incidental food contact. Formulations can only use one or more approved base stocks, additives, and thickeners.

How are Food-Grade Conveyor Systems Designed?

Sanitation and use requirements are the starting point. Each system requires specialized engineering to meet FDA regulations. Your conveyor or food processing equipment will go through a material specification checklist. The process is based on the information provided by the end user with the most important factor considered, cleanability. The choices between stainless steel or lower grade materials can have a large impact on the cost.

In the food and beverage industry, it is important that all food processing conveyors adhere to rigorous hygienic requirements. The conveyor is designed to reduce the number of buildup points where residue can accumulate. There are three standard cleanup design packages that Ultimation starts with:

• Wipe Down Series for Dry Cleanup
• Washdown Series for Wet Cleanup, or
• Hygienic Series for Sanitary Cleanup

Wipe Down Rated for Dry Cleanup
The wipe down rated package consists of carbon steel materials with 304 stainless steel rollers and pulleys. Conveyor frames and supports are FDA powder coated. The conveyor will have an FDA belt (if applicable). System lubricants are FDA-H1 with a non-washdown drive. Electrical and controls are NEMA-1 standard.

Washdown Rated for Wet Cleanup
The washdown rated package consists of 304 stainless steel 2B mill finish. Stitch welded conveyor frames and supports use 304 stainless steel rollers and pulleys. Lubricants are FDA-H1 with an epoxy painted washdown drive. All electrical and controls are NEMA-4X rated. The system and frame welds will be cleaned but not ground. Stainless steel conveyor belt systems in this category are very common.

Hygienic Rated for Sanitary Cleanup
The hygienic rated package consists of 304 stainless steel 2B mill finish. Frames are continuously welded conveyor frames. Supports are 304 stainless steel rollers and pulleys. Lubricants are FDA-H1 with stainless steel washdown drive. Electrical and controls are NEMA-4X rated. The system’s welds will be coarse ground and cleaned.
